Two fastening philosophies exist for the same 15-liter-class inline-six. Here is the fastener-level engineering behind the difference — tightening torque and torsion, thermal cycling, yield margin — and why stud kits keep paying off after the third overhaul.

By HENWEIT  |  September 2026  |  ~ 9 min read  |  Applies to CAT 3406E (14.6 L) & C15 (15.2 L) diesel engines

Key takeaways

• A one-piece head bolt is stretched and twisted by the wrench at the same time: its shank carries combined tension + torsional shear, so part of the bolt’s strength budget never reaches the gasket as clamp load.
• A stud kit loads the stud in essentially pure tension — only the nut rotates — so the same material delivers a higher, more uniform and more heat-stable preload.
• OEM-style 3406E/C15 head bolts are single-use in service practice: a complete new set goes in every time the head comes off. Stud kits are inspected and reused, overhaul after overhaul.

01 · THE SEALING PROBLEM

One head, two fastening philosophies

The cylinder head of a heavy-duty diesel is clamped by dozens of fasteners working in one of the harshest environments on the machine: combustion pressure spiking with every power stroke, metal temperature swinging from cold start to full load, and a head gasket whose entire job depends on one variable — stable, uniform clamp load around the combustion seal.

For the CAT 3406E and C15 platforms, two configurations are in service today:

• The OEM-style cylinder head bolt kit — one-piece, 12-point head bolts with separate hardened washers installed through the head and threaded directly into the block. Tightened by rotating the bolt itself.
• The aftermarket cylinder head stud kit — parallel-shank studs threaded into the block deck, protruding above the head surface, clamped by 12-point nuts and hardened washers. Tightened by rotating the nut only.

HENWEIT manufactures and supplies both configurations. They are not simply “better” and “worse” products — they are different engineering answers to the same sealing problem, and the right choice follows from how the engine will be loaded and how often it will be opened up.

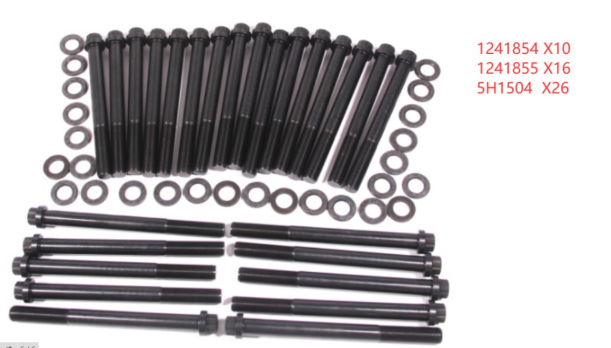

Figure 1 — OEM-style cylinder head bolt kit (3406E/C15). Reference part numbers and kit quantities as marked: 124-1854 ×10, 124-1855 ×16, 5H-1504 ×26.

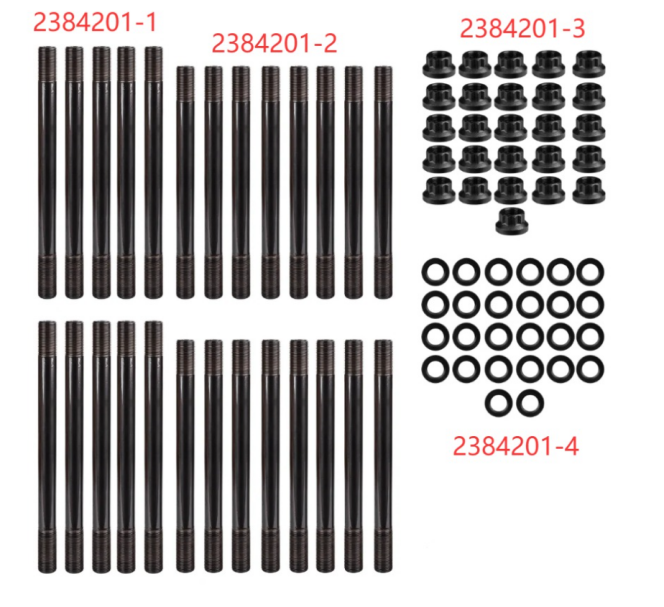

Figure 2 — HENWEIT cylinder head stud kit (238-4201 series): long studs (-1), studs (-2), 12-point nuts (-3), hardened washers (-4).

02 · TIGHTENING MECHANICS

What the wrench really does to a head bolt

When a technician tightens a conventional one-piece head bolt, the wrench turns the entire bolt: head, shank and threaded end all rotate together. Two things happen in the shank at the same time:

1. Axial stretch. The engaged threads pull the bolt against the constrained stack and stretch it like a spring. That elastic stretch is the clamp load — it is what we actually want from the operation.
2. Torsional twist. Because thread friction and bearing friction resist rotation, the shank also winds up like a torsion bar while it stretches. This torsional shear stress does no work on the gasket — it is a tax collected by friction.

So during tightening, the bolt shank carries a combined stress state: axial tension (σ) superimposed on torsional shear (τ). Under combined loading, the bolt reaches its yield point at a noticeably lower axial load than the same steel loaded in pure tension. In plain terms: part of the bolt’s strength is spent fighting the wrench instead of clamping the head.

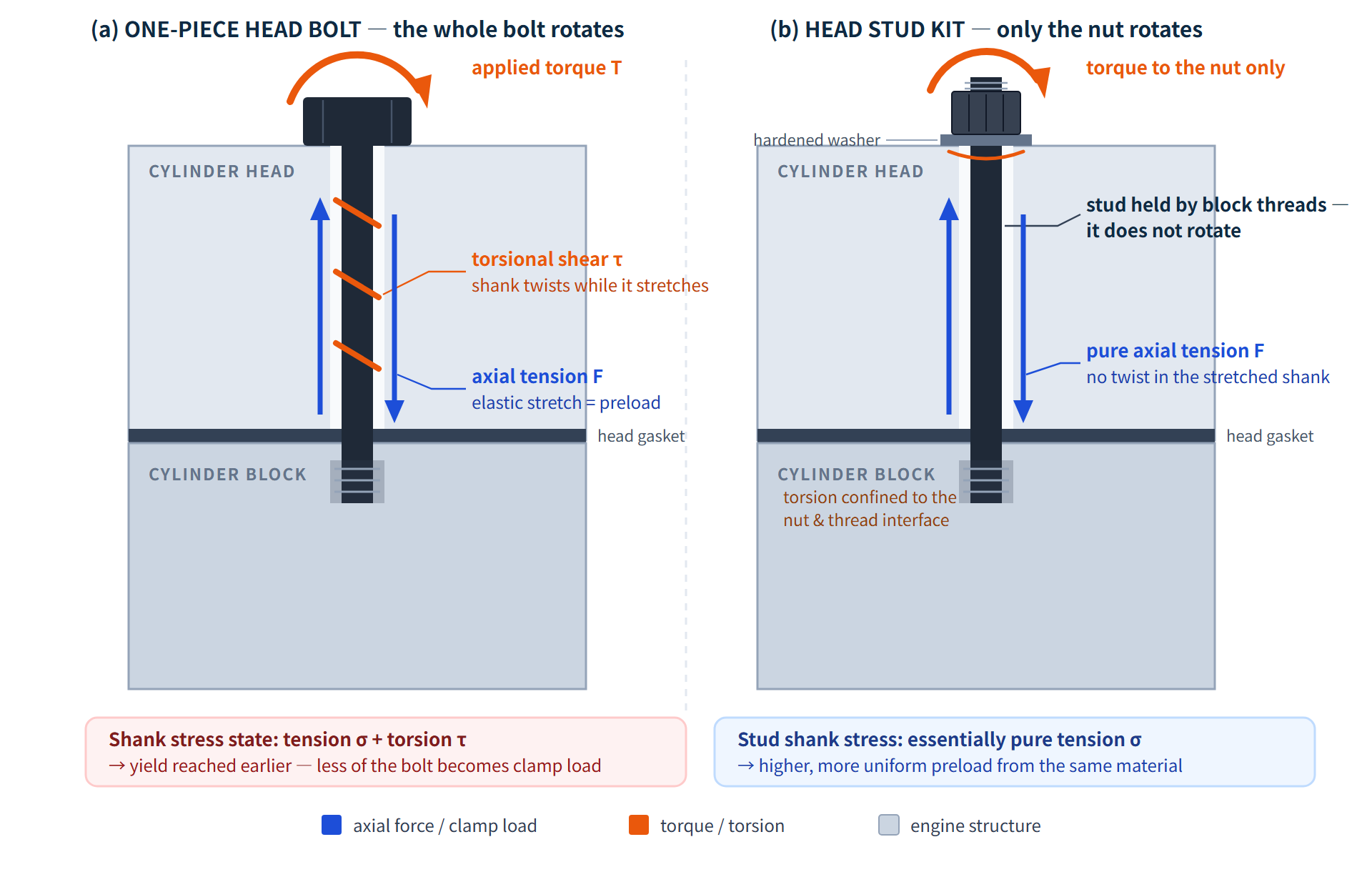

Figure 3 — Where the tightening torque goes. (a) A one-piece bolt: the wrench rotates the whole fastener, so the shank stretches and twists simultaneously — combined stress σ + τ. (b) A stud kit: the stud is fixed in the block and never rotates; only the 12-point nut turns, so the elastic shank works in pure tension and the full strength of the material is available as clamp load.

ENGINEERING NOTE Combined stress, in one sentence: under simultaneous tension and torsion, a fastener yields earlier than it would in pure tension (von Mises criterion). Every unit of torque that becomes twist in the shank is clamp load the gasket never receives.

A stud kit reorganizes where the friction lives. The stud is first threaded into the block and stays fixed — it never rotates during final tightening. Only the nut turns, on top of a hardened washer. Two details do the engineering work here:

• Fine pitch on the nut end. The 12-point nuts run on a fine thread, which converts the input torque into axial stretch more efficiently — less torque (and therefore less torsion) is needed for the same clamp load.
• Controlled bearing surface. The nut bears on a hardened washer instead of galling its way through the head counterbore, so the friction component is small and repeatable bolt-to-bolt.

The result: the long, elastic section of the stud between head and block sees essentially pure axial tension. For the same fastener material, more of the strength budget is converted into sustained preload — and bolt-to-bolt scatter is lower, which is exactly what a gasket wants.

03 · THERMAL CYCLING

Heat cycles, relaxation and the one-time bolt

Tightening is only the first hour of a very long life. Every start/stop and every load swing moves the clamped stack: head and block expand and contract at different rates, and the gasket creeps slightly under sustained load and temperature. The fastener answers with preload relaxation — and here the two configurations part ways.

A bolt tightened near its yield limit has little elastic reserve left. Each heat cycle that adds relaxation pushes part of the shank into its plastic range: the bolt gets permanently longer, and the clamp load drops permanently. That is the “stretched bolt” you measure at teardown — and the direct path to lost gasket sealing pressure and, eventually, combustion leak or coolant intrusion: the classic blown head gasket.

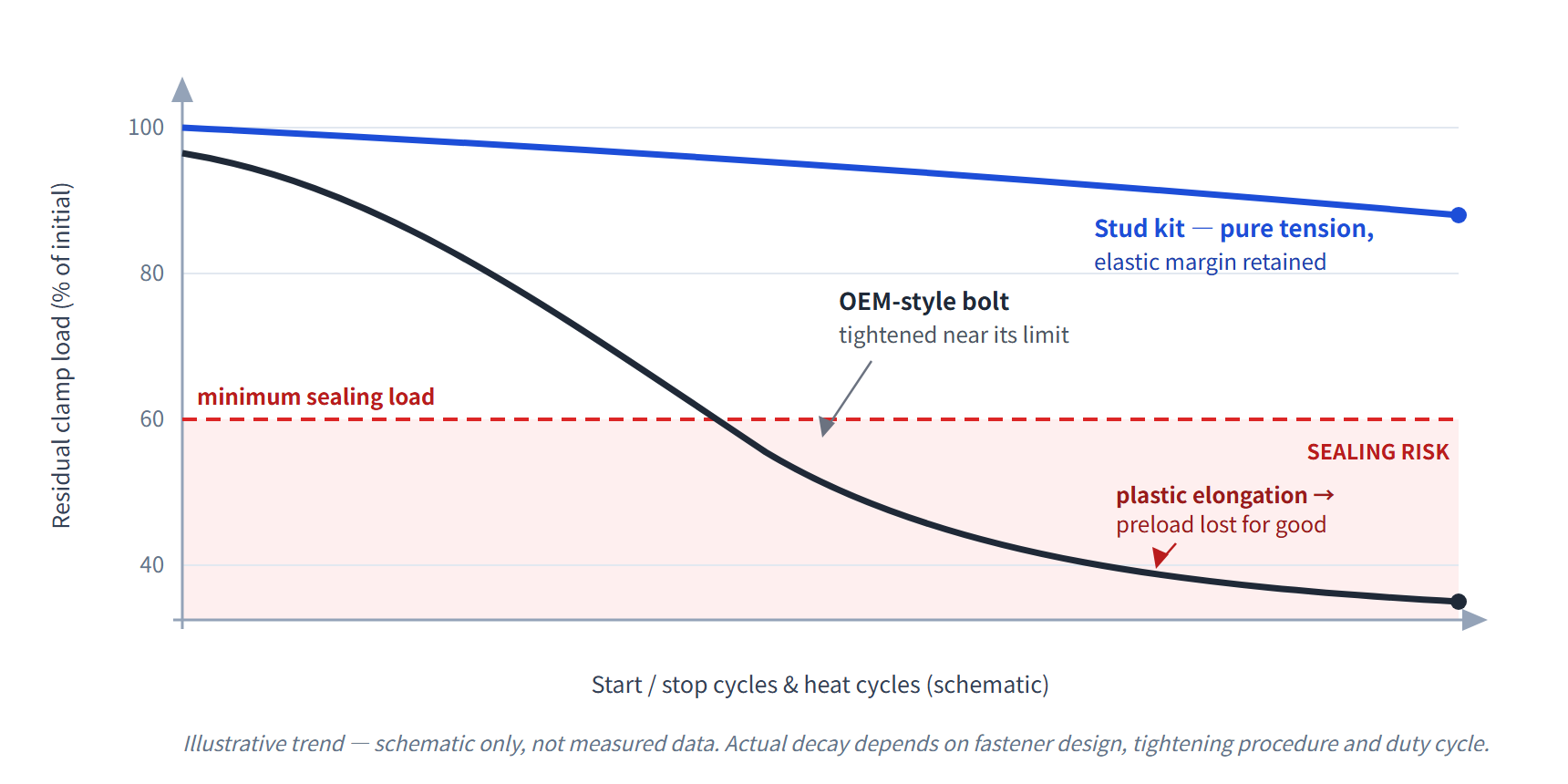

Figure 4 — Preload retention under thermal cycling (illustrative). A fastener working near its yield limit loses clamp load quickly as relaxation turns into permanent elongation; a stud working in pure tension keeps an elastic margin and stays above the sealing threshold far longer.

A stud working in pure tension with a proper yield margin stays elastic through the same cycles: its preload decays more slowly and remains predictable. That margin — not a magic material — is what keeps the gasket sealed on engines that live a life of cold starts, hot shutdowns and heavy load factors.

SERVICE NOTE In OEM service practice for the 3406E/C15, the one-piece head bolts are treated as single-use: whenever the head comes off, a complete new bolt set is installed at reassembly. Never clean up and re-fit stretched bolts — the elongation is invisible to the eye but permanent.

04 · OVERHAUL ECONOMICS

Why rebuilders specify stud kits

For an engine that will see repeated major overhauls, the case for studs goes beyond preload physics. Three practical advantages come back on every rebuild:

1. Reusable across overhauls

High-strength alloy studs, loaded in pure tension, survive repeated remove-and-refit cycles. At each rebuild they are inspected — stretch, cracks, thread condition — and reused if within limits. One kit serves several engine lives, so the fastener cost per overhaul falls every time the engine comes back. (Any fastener that shows stretch, cracks or thread damage must of course be replaced.)

2. Assembly on a heavy head

A 15-liter-class head is heavy, awkward and usually handled with a crane. Studs stand proud of the deck and act as guide pins: the gasket drops over the studs and stays put, and the head lowers straight onto its seat without hunting for bolt holes. There is no risk of starting a bolt cross-threaded at an angle in a blind hole — a mistake that costs a thread repair in the block.

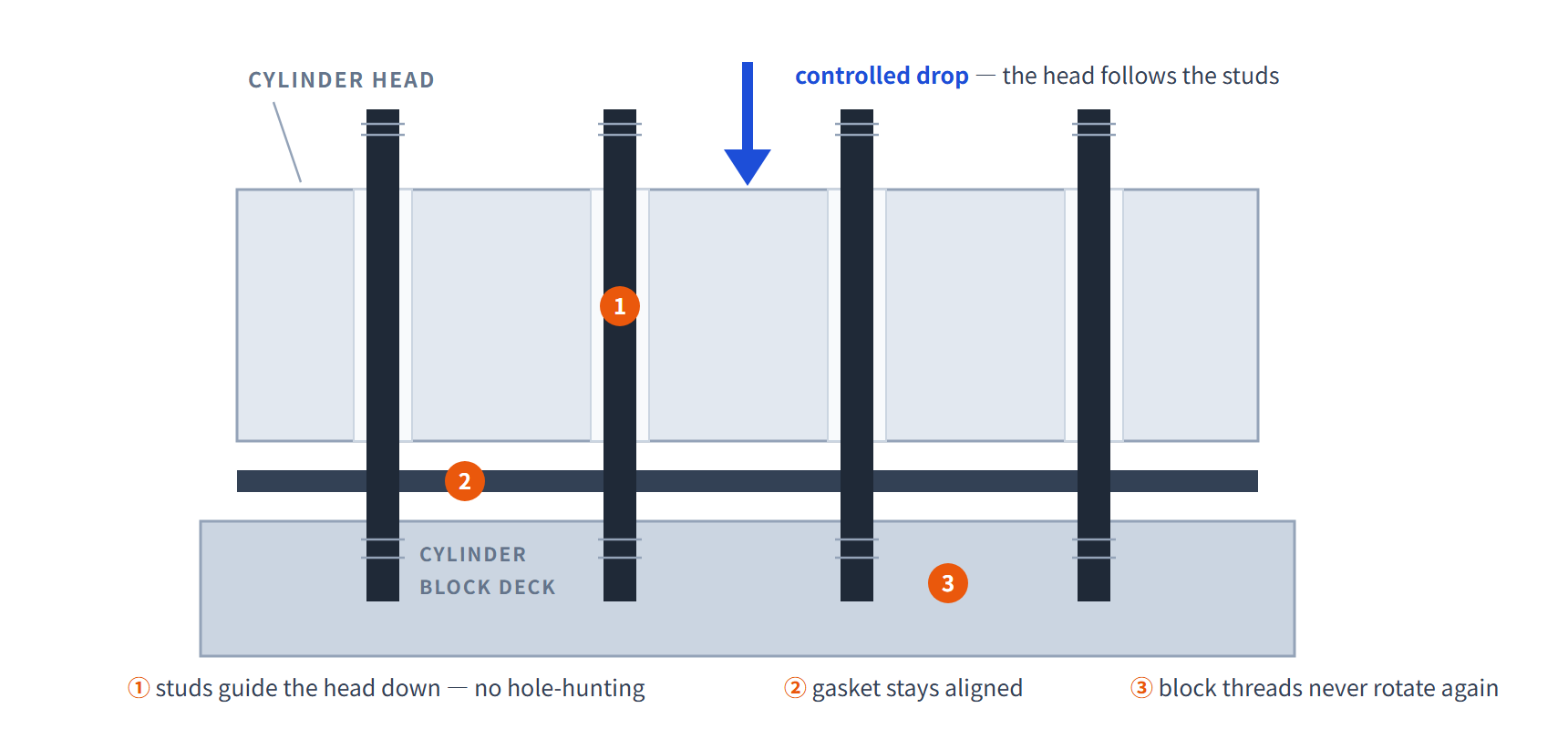

Figure 5 — Studs double as guide pins. During head installation the studs align gasket and head, protect the block threads, and move all final tightening to fresh nut threads above the head surface.

3. Higher, more uniform clamp

Fine-pitch 12-point nuts on hardened washers convert more of the tightening effort into sustained clamp load and keep bolt-to-bolt scatter low. On engines running higher load factors — uprated turbocharging, heavy haul, mining and construction duty — that margin translates directly into longer gasket life and fewer seal-related failures.

SERVICE NOTE Honest engineering also says when not to use studs: for a stock engine receiving a one-time top-end reseal, the OEM-style bolt kit remains the simplest, fully correct solution — direct replacement, no procedure changes, lowest cost for a single job.

05 · SELECTION GUIDE

Which configuration fits your engine?

Aspect	OEM-style head bolt kit	Head stud kit (stud + nut)
Loading of the tension member	Tension + torsion while tightening (combined stress)	Essentially pure tension; only the nut rotates
Achievable preload (same material)	Moderate — torsion consumes part of the strength budget	Higher and more uniform — fine pitch, controlled washer bearing
Preload after heat cycles	Decays faster; near-limit bolts elongate plastically	More stable; elastic margin retained
Reuse in service	Single-use practice — replace the complete set at every head-off	Reusable across overhauls after inspection
Head installation	Align the head, start every bolt blind	Studs guide head and gasket; nut-side tightening
Best suited to	Stock engine, one-time reseal, standard duty	Repeat overhauls, high load factor, performance builds

06 · KIT REFERENCE

HENWEIT kit reference for 3406E / C15

Both configurations are supplied as complete kits for one engine, with reference numbers clearly marked for application identification.

OEM-style cylinder head bolt kit

Reference No.	Description	Qty / kit
124-1854	Cylinder head bolt	10
124-1855	Cylinder head bolt	16
5H-1504	Hardened washer	26

Quantities as marked in the kit photograph (Figure 1). The kit covers the complete head bolt pattern.

Cylinder head stud kit (238-4201 series)

Reference No.	Description	Function
238-4201-1	Long stud	Main clamp positions
238-4201-2	Stud	Standard positions
238-4201-3	12-point nut	Clamping element (rotates)
238-4201-4	Hardened washer	Controlled bearing surface

Suffixes identify component groups within the kit, as photographed in Figure 2. Studs are high-strength alloy steel, heat treated.

Frequently asked questions

Q: Are 3406E / C15 head bolts reusable after the head has been removed?

A: No. In OEM service practice these one-piece bolts are treated as single-use: a stretched bolt has lost its preload permanently, even if it looks fine. Install a complete new bolt set every time the head comes off.

Q: Why does a stud kit achieve higher preload than a same-size bolt?

A: Because the stud shank is not twisted by the wrench: the fine-pitch nut end and the hardened washer convert more of the input torque into axial stretch instead of torsion. More of the material’s strength budget becomes clamp load, and friction scatter bolt-to-bolt is lower.

Q: Can head studs really be reused?

A: Yes — that is a core advantage of the design. Studs loaded in pure tension can be reused over multiple overhauls, provided inspection shows no permanent stretch, no cracks and sound threads. Replace any fastener in doubt, and follow the kit instructions regarding nut replacement.

Q: Does the tightening procedure change with a stud kit?

A: Yes. Stud installation into the block and nut tightening are two separate steps, with their own sequence and values. Always follow the specification supplied with the kit and the engine’s bolt order; treat published torque values as application data, not guesswork.

Q: Which kit should I buy for a stock C15 reseal?

A: If the engine is stock and this is a one-time repair, the OEM-style head bolt kit is the simplest correct choice. Choose the stud kit if the engine returns to the shop regularly, runs at high load factors, or is built with performance upgrades.
